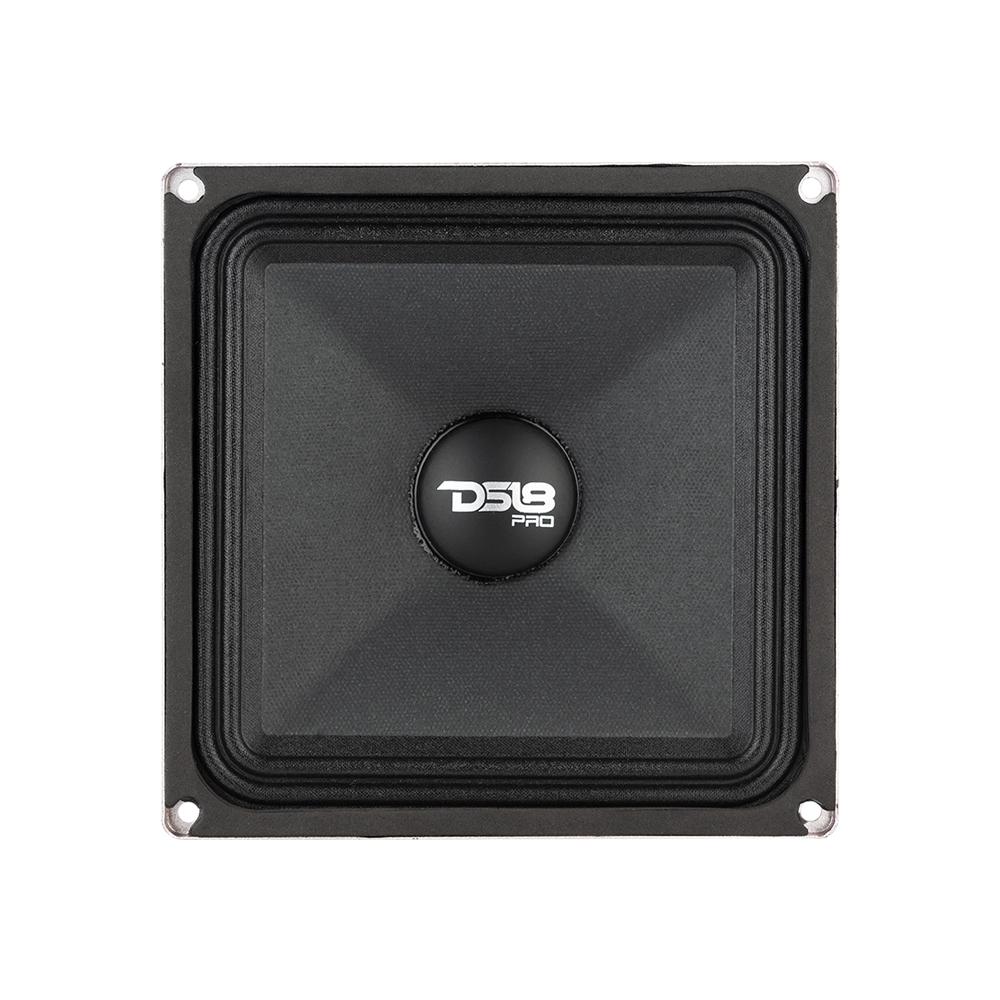

DS18 PRO-X6.4MSQ 6.5"x 6.5" Square Mid-Range Loudspeaker 500 Watts 4-Ohm

DS18 is always innovating and dominating on the pro audio scene. The newest addition to our pro audio PRO line is the extremely loud PRO-X6.4MSQ. This amazing speaker shares all the characteristics of our very popular X6.4M but is completely square in construction to maximize cone area. This speaker comes in at 250w RMS and 500w Peak power with a 95dB sensitivity so you will have no problem getting loud easily. The added cone area will bring that added sensitivity and sound fullness for crazy loud PRO Audio sound.

Highlights

• High power pro audio speaker handling 250w RMS and 500w Peak power.
• Square cone construction to maximize cone area and boost sensitivity for very loud PRO Audio sound.
• Strong ferrite magnet with CCA high wattage voice coil and 95dB sensitivity.

Technical details

Specifications
Nominal Diameter	6.5x6.5" Square
Nominal Impedance	4 Ohms
RMS Power Handling	250W
MAX Power Handling	500W
Sensitivity (1w/1m)	95 dB
Frequency Response	80Hz - 16.5KHz
Recommended Hi Pass Crossover	120 Hz
Motor:
Voice Coil Diameter	1.5" / 38.6mm
Voice Coil Former Material	Kapton
Winding Material	CCAW
Cone Material	Paper
Dust Cap Material	Paper
Surround Material	Cloth
Basket Material	Steel
Basket Color/Finish	Glossy Red
Magnet Material	Ferrite
Magnet Weight	30 Oz
Displacement Volume	0.32L
Measurements
Overall Diameter	6.61" x 6.61/ 168 x 168mm
Overall Depth	3.11" / 79mm
Front Mount Baffle Cutout	6.02" x 6.02/ 153 x 153mm
Mounting Depth	2.87" / 73mm
Motor Diameter	4.72" / 120mm
