DS18 ZXI-212LD.RG Bass Package 2 x ZXI12.4D 12" Subwoofers In a Ported Rugged Box
Immerse yourself in powerful booming bass with DS18’s ZXI-212LD.RG!

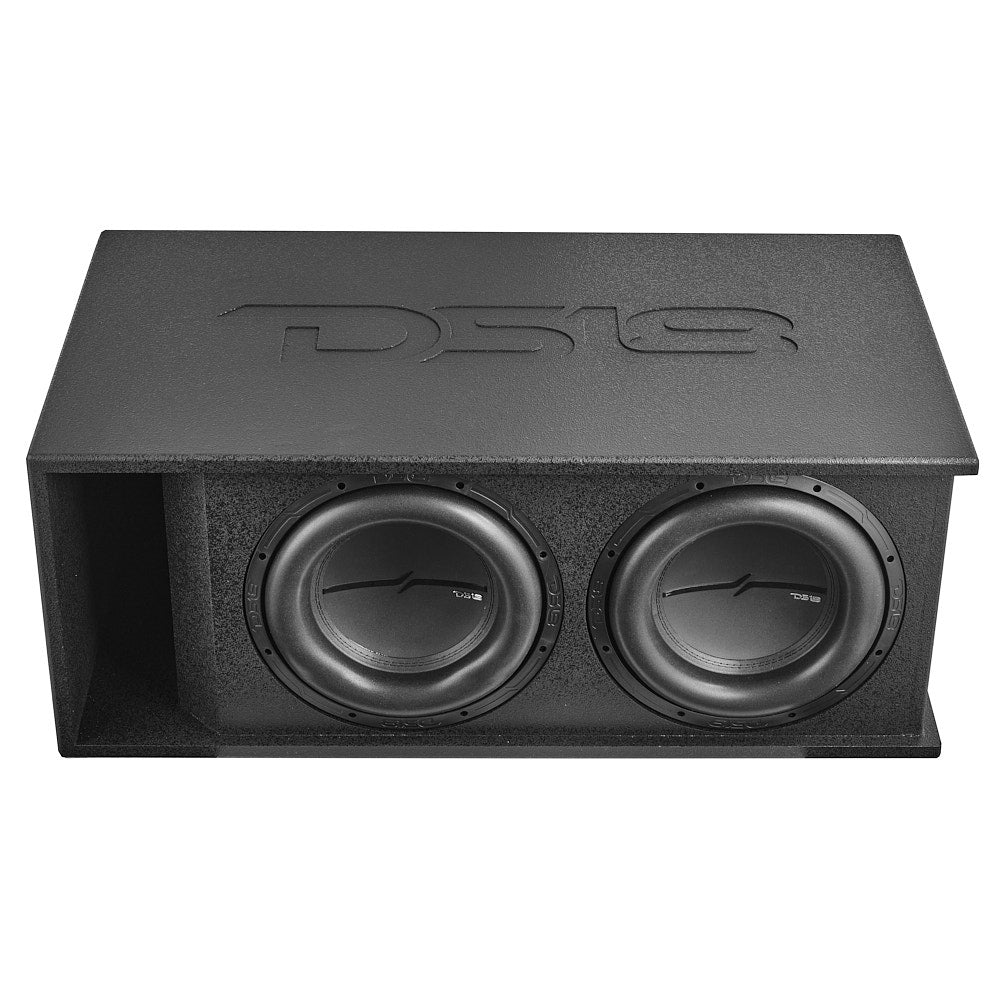

The ZXI-212LD.RG is a precisely engineered enclosure, built to maximize the potential of it’s included subwoofers, the ZXI12.4D. This front ported enclosure, with port dimensions of 1.96" x 13" x 23.2" (50 x 330 x 590 mm), ensures optimal air flow, minimizing distortion and maximizing the bass. Crafted from ¾” MDF and finished with rugged black bed liner, DS18’s ZXI-212LD.RG guarantees structural integrity and reduces resonance for powerful output.
At the heart of this beast lies the ZXI12.4D, a single 12" subwoofer that embodies DS18’s perfect harmony between precision engineering and raw power. With a dual-ohm configuration, the ZXI-212LD.RG has an impedance of 1-OHM, and is ready to handle a thunderous 2000W of RMS power, and a staggering 4000W of MAX power handling. The ZXI12.4D boasts an impressive sensitivity of 93 dB, ensuring every nuance of your favorite tracks is reproduced with impeccable clarity and detail. The ZXI12.4D allows you to experience the full spectrum of low frequency response, this masterpiece delivers the most efficient frequency response range from 15Hz to 60Hz. This range is even easier to feel with the included enclosures port tuning to 29Hz. With these subwoofers you’ll feel every note of all your favorite songs, immersing you in the audio like never before.
As you install the ZXI-212LD.RG in your vehicle, its dimensions of 14.5" (368mm) in height, 36.22" (920mm) in width, and 19.7" (500mm) and 21.65” (550mm) in depth seamlessly blend into your car's interior, ensuring a clean and unobtrusive installation.
Highlights
- Dual ZXI12.4D handles a thunderous 2000W of RMS power and a staggering 4000W of MAX power.
- Impeccable clarity and detail with a sensitivity of 93 dB and a frequency response range from 15Hz to 600Hz.
- 3" black aluminum voice coil for heat dissipation
- The precisely engineered enclosure with an internal volume of 141 liters (5ft³) and front-ported design
- Expertly crafted from 3/4" (19mm) MDF with a sleek black bed liner paint finish
- Optimal port dimensions of 1.96" x 13" x 23.2" (50 x 330 x 590 mm)
- Seamless integration with your vehicle's interior, with dimensions of 14.5" (368mm) in height, 36.22" (920mm) in width, and 19.7" (500mm) and 21.65” (550mm) in depth.
Great For
- Car Audio
- Pro Audio
Technical Details
| SPECIFICATIONS | |
| GENERAL | |
| Speaker Type / Size | Dual 12" Subwoofer (ZXI12.4D) |
| Total Impedance | 1 ohm |
| Total RMS Power Handling | 2000 W |
| Total MAX Power Handling | 4000 W |
| Sensitivity (1w/1m) | 93dB |
| Frequency Response | 15-600 Hz |
| Recommended Lo Pass Crossover | 60 HZ |
| SPEAKER SPECIFICATIONS | |
| Voice Coil Diameter | 3" / 76.5mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | CCAW |
| Cone Material | Non Pressed Paper |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight | 224 Oz (4X56Oz) |
| BOX SPECIFICATIONS | |
| Internal Volume | 141L / 5ft3 |
| Port Tune | 29Hz |
| Load Configuration | Parallel (Dual 4ohm Each) |
| Box Type | Front Ported |
| Box Material | 3/4" / 19mm MDF |
| Finish Material | Black bedliner Paint |
| -3Db Dropping Point | 24Hz |
| MEASUREMENT | |
| Height | 14.5" / 368mm |
| Width | 36.22 / 920mm |
| Depth 1 | 19.7" / 500mm |
| Depth 2 | 21.65" / 550mm |
| Port Dimensions (W/H/Length) | 3.93"x13"x26" / 100x330x660mm |
