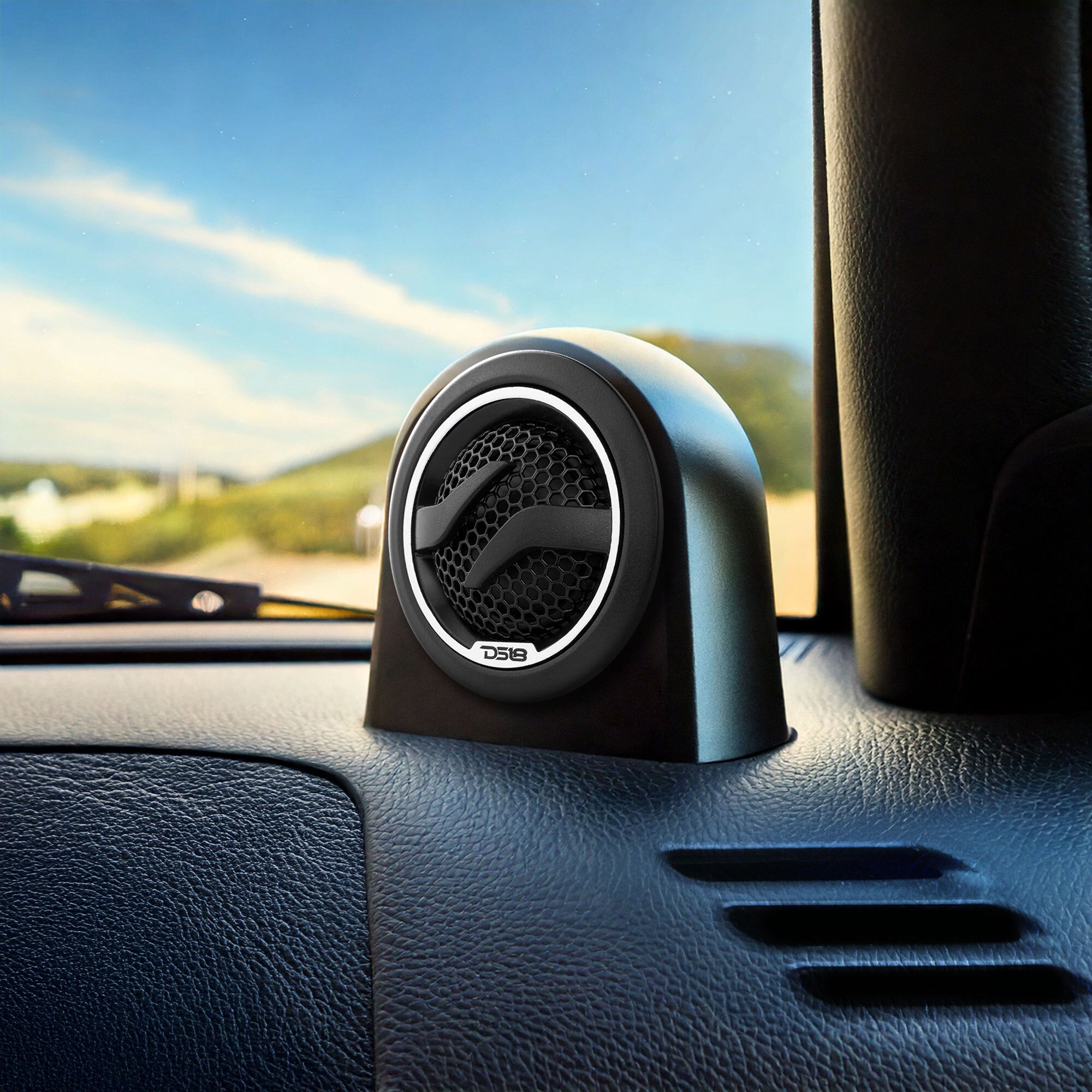

DS18 ZXI-T1 1.7" PEI Dome Tweeter With 1" Aluminum VC 100 Watts Max 4 Ohm
The aluminum design 1" voice coil enhances extreme volume and gives you amazing crisp highs to complement your mid and low range pro audio speakers. These tweeters are great for someone wanting to add crisp and clear highs to their existing system and can also be ran on factory radio power.
Highlights
Extremely loud and versatile that will give you clear and crisp highs with overall amazing looks.
Great Power and Tweeter design brings extreme high range volume that can be heard for great distances and fill out your frequency range effortlessly.
Easily mountable and configured with stock and aftermarket sound systems.
AES power handling of 25 watts with a peak of 100 watts @ 4 ohm for a good amount of power that does not require large aftermarket amps
Technical Details
| Nominal Diameter | 1.7” / 43mm |
| Nominal Impedance | 4 OHMS |
| AES Power Handling | 25W |
| Program Power Handling | 50W |
| Peak Power Handling | 100W |
| Sensitivity (1w/1m) | 92dB |
| Frequency Response | 1KHz-20KHz |
| Recommended Hi Pass Crossover | 3.5KHz |
| Pair | Yes |
| Body Color & Material | Black ABS |
| MOTOR | |
| Voice Coil Diameter | 1”/ 25.4 mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | SV |
| Diaphragm Material | PEI |
| Magnet Material | Neodymium |
| Magnet Weight | 13 g |
| MEASUREMENTS | |
| WITH ANGLE SURFACE MOUNT ADAPTOR | |
| Overall Diameter | 1.89" / 48 mm |
| Overall Height | 1.73" / 44 mm |
| WITH FLUSH MOUNT ADAPTOR | |
| Overall Diameter | 2.16" / 55 mm |
| Overall Depth | 1.18" / 30 mm |
| Front Mount Baffle Cutout | 1.89" / 48 mm |
| Mounting Depth | 0.78” / 20 mm |
| TWEETER WITHOUT ADAPTER | |
| Overall Diameter | 1.71" / 43.5 mm |
| Overall Height | 1" / 27.5 mm |
