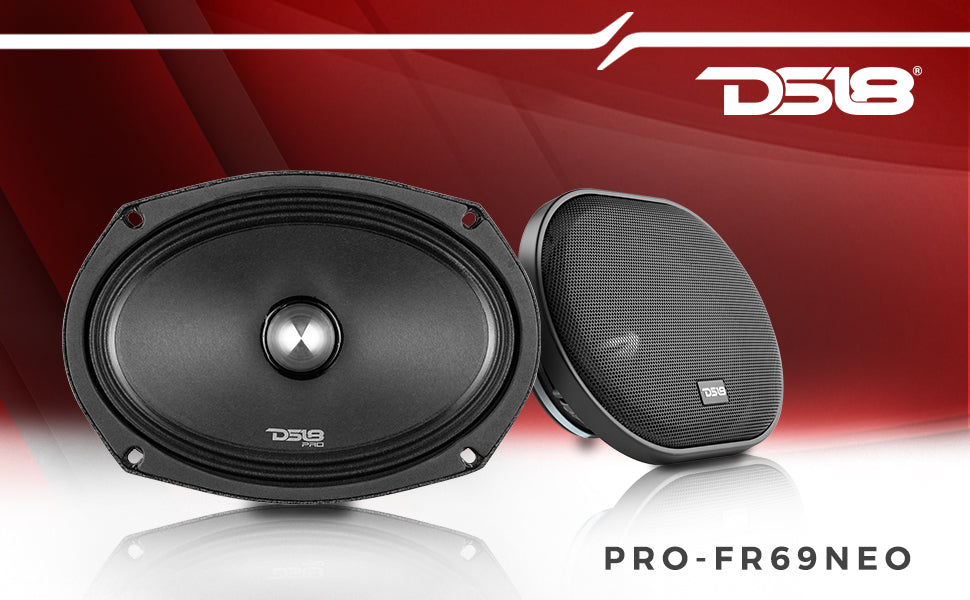

DS18 PRO-FR69NEO 6x9" Neodymium Full-Range Loudspeaker with Bullet 500 Watts 4-Ohm with Grill

Versatility is paramount in large and small audio systems alike. Many DS18 fans have been wanting a more powerful 6x9 so they can get clear and loud sound from their 6x9s. We have obliged the overwhelming requests by releasing our PRO-FR69NEO. This Neodymium driven midrange speaker will be the loudest 6x9 we have while also handling the most power.

The great thing about NEO motor structures is that you get better performance, higher wattage handing, better efficiency, and much lighter in weight than a traditional speaker with a ferrite motor structure. This is a 4 ohms speaker that handles 250w RMS and 500 W Peak power with a dB sensitivity rating of 98dB. This neo also has a built in bullet resonator to help this screaming full range all the way from 100Hz to 9000Hz with extreme clarity and loudness.

Highlights

• Neodymium motor structure that handles more power, lighter, and more efficient than ferrite motors.
• Silver bullet resonator that will bring the loudness and clarity of this speaker to the highest pinnacle.
• High RMS rating of 250w RMS and 500w MAX @4 Ohms so you can have a very high powered 6x9 to blow away the competition.
• High decibel rating so it does not take max power to get the fullest sound.

Technical Details

Nominal Diameter	6x9"
Nominal Impedance	4 Ohms
RMS Power Handling	250w
MAX Power Handling	500w
Sensitivity (1w/1m)	98dB
Frequency Response	100Hz-9KHz
Recommended HI Pass Crossover	120Hz
MOTOR
Voice Coil Diameter	38.6mm/1.5"
Voice Coil Former Material	Kapton
Winding Material	CCAW
Cone Material	Paper
Bullet Material	Aluminum
Surround Material	Cloth
Basket Material	Aluminum
Magnet Material	Neodymium
Magnet Weight	2.8 Oz
Displacement Volume	0.0524L
MEASUREMENTS
Overall Diameter	9.44x6.57"
Overall Depth	3.31"
Front Mount Baffle Cutout	8.74x5.97"
Mounting Depth	2.874"
Motor Diameter	4.13"
