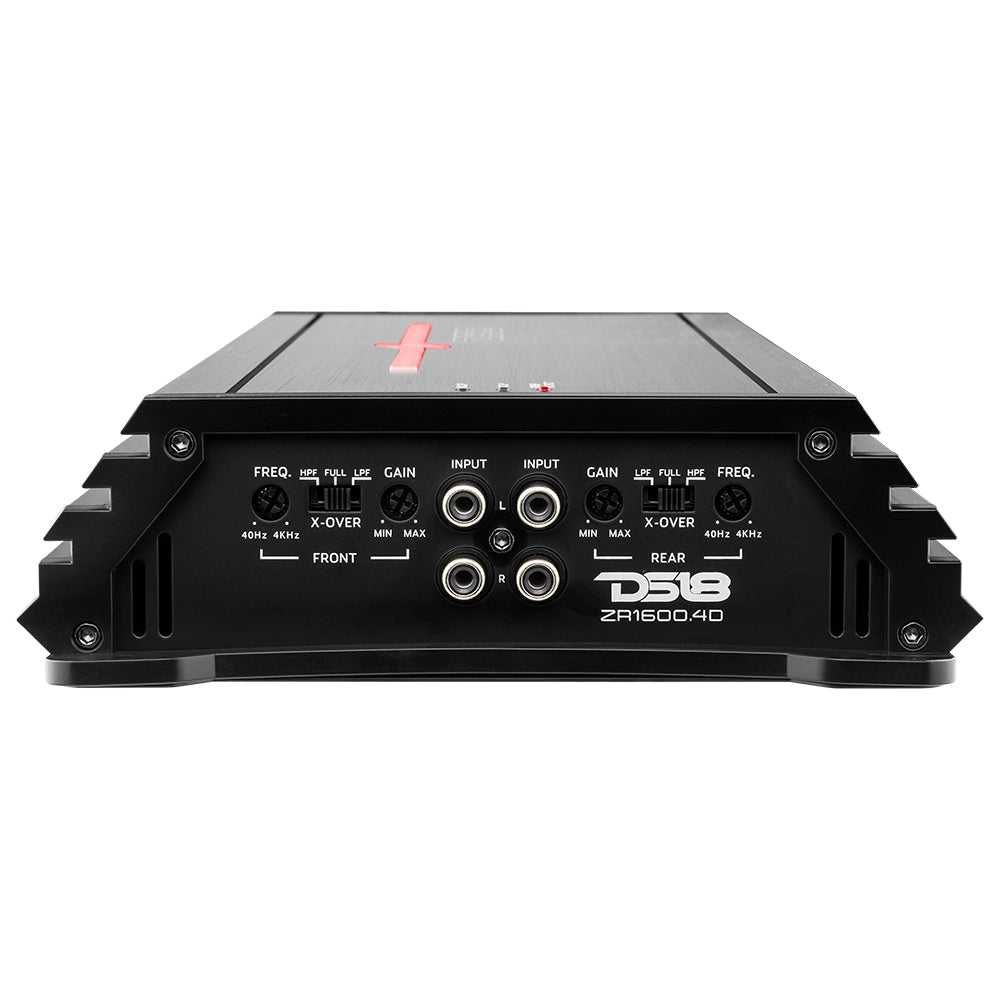

DS18 ZR1600.4D ZR Class D 4-Channel Stereo Full Range Car Audio Amplifier 4 x 400 @4 Ohms Watts RMS
DS18’s ZR series of amplifiers are guaranteed to supercharge your sound system to deliver brilliant sound and bulky bass frequencies.
The ZR series was designed to pump up the volume and help your speakers reach their maximum potential as a part of your sound system. These amps offer a surplus of tuning options: the ZR1600.4D comes with Lowpass, and Highpass filters to help tune any song to your frequency.
The ZR1600.4D is made to deliver 2 x 1200 watts RMS @ 4-Ohms Bridge, 4 x 680 watts RMS @ 2-Ohms, and 4 x 400 watts RMS @ 4-Ohms giving you the perfect power for your bass.
Key Features
- Digital Class D Full Range Amp
- MAX Wattage: 7200w Peak
- RMS Wattage: 2 x 1200 Watts RMS @ 4-Ohms Bridge, 4 x 680 Watts RMS @ 2-Ohms, 4 x 400 Watts RMS @ 4-Ohms
- Frequency Response: 20Hz – 20KHz
- Signal to Noise Ratio: >90dB
- Efficiency at 4-Ohms: 82%
- Total Harmonic Distortion: 1%
- Input Range: 0.2v - 6v
- Selectable X-Over: FULL/LPF/HPF
- LED Indicator: Clipping, Power, Protect
- Power and Ground Terminal: 0 Ga
- Minimum Impedance: 2 Ohms (Stereo) / 4 Ohms (Bridge)
Great for:
- Car Audio
- Pro Audio
- Off Road
- Motorcycles
- Stunt Walls
- DIY Projects
Technical Details
| Specifications | |
| POWER | |
| Total Watts (Peak) | 7200W |
| RMS Power @ 4 ohm | 4 x 400W |
| RMS Power @ 2 ohm | 4 x 680W |
| RMS Power @ 4 ohm Bridge | 2 x 1200W |
| AUDIO | |
| Frequency Response | 20Hz-20KHz |
| Signal to Noise Ratio | >90dB |
| Efficiency @ 4ohm | 82% |
| Damping Factor | 160 |
| Input Impedance | 20K ohms |
| Channel Separation | 60dB |
| Total Harmonic Distortion (THD) | 1.00% |
| Low Level Input Range | 0.2-6V |
| High Level Input | No |
| Selectable X-Over | FULL/LPF/HPF |
| X-Over Filter Range | 40Hz-4KHz |
| Bass Boost Range | No |
| Bass Boost Frequency | N/A |
| Infrasonic Filter | No |
| Phase Selector | No |
| FEATURES | |
| Amplifier Class | Digital |
| Amplifier Type | Stereo Full Range |
| Number of Channels | 4 |
| Minimum Impedance | 2 ohms (Stereo) / 4 ohms (Bridge) |
| Led Indicator | clipping/protect/power |
| Power Input Terminal Size | 0ga |
| Fuse Size | 280A |
| Remote Level Control | No |
| Cooling Fan | No |
| Voltmeter | No |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes <9 / >16 Volts |
| Clipping Protection | Yes |
| Body Color / Finish | Black Aluminum Brush |
| MEASUREMENT | |
| Overall Length | 12.83" / 326mm |
| Overall Wide | 7.24" / 184mm |
| Overall Height | 2" / 53mm |
| Heatsink Length | 11.45" / 291mm |
| Gross Single Unit Weight | 6.18 LB |
