DS18 6JP300N-4 PRO 6.5" Neodymium Full-Range Loudspeaker 150Watts Rms 4-Ohm (Used in JP6NEO Jeep Enclosures)
Born from passion for perfecting the in-car audio experience, DS18’s 6JP300N-4 is more than just a component – it’s the missing piece to your perfect sound system.
Every element of the 6JP300N-4 is thoughtfully engineered, from the ground-breaking neodymium magnet that intensifies sound quality, to the precision-wound voice coil that ensures unwavering accuracy. This seamless fusion of artistry and engineering is a testament to DS18's dedication to delivering products that transcend the ordinary.
Every DS18 6JP300N-4 undergoes rigorous testing to conquer every obstacle. The cone material, crafted from premium paper, renders vocals with warmth and precision. Meanwhile, the resilient cloth surround allows for fluid motion, culminating in lifelike audio reproduction that stirs your soul.
The aluminum basket, dressed in a satin black finish, provides a sturdy foundation for the 6JP300N-4. Engineered with precision, this custom-tooled basket provides unparalleled stability, effectively reducing unwanted vibrations, and ensuring distortion-free sound reproduction. The strategic design incorporates ample ventilation, allowing for efficient heat dissipation, even during prolonged listening sessions at high volumes.
Superior audio performance demands pristine signal transmission, and DS18's polished high quality spring loaded push terminals deliver just that. The polished surface minimizes resistance and contact irregularities, effectively reducing signal loss and preserving the integrity of your audio signals. The spring-loaded mechanism further simplifies the installation process, making it easy to achieve a tight and secure connection every time.
With 150W RMS power handling (300W MAX), DS18’s 6JP300N-4 boldly challenges convention with unwavering authority. The DS18 6JP300N-4 features a neodymium magnet for unparalleled magnetic strength—revolutionizing your soundstage by allowing these speakers to get extremely LOUD very easily. Don't be fooled by its compact size; this speaker has a deafening 97dB sensitivity (1w/1m), unleashing the true potential of your car audio system. Getting as LOUD as you need for soaring vocals, pulsating basslines, and exhilarating highs.
Highlights
- Powerful 150W RMS handling (300W MAX) with 97dB sensitivity
- Ground-breaking neodymium magnet intensifies sound quality
- Rugged and elegant Satin Black finished steel basket

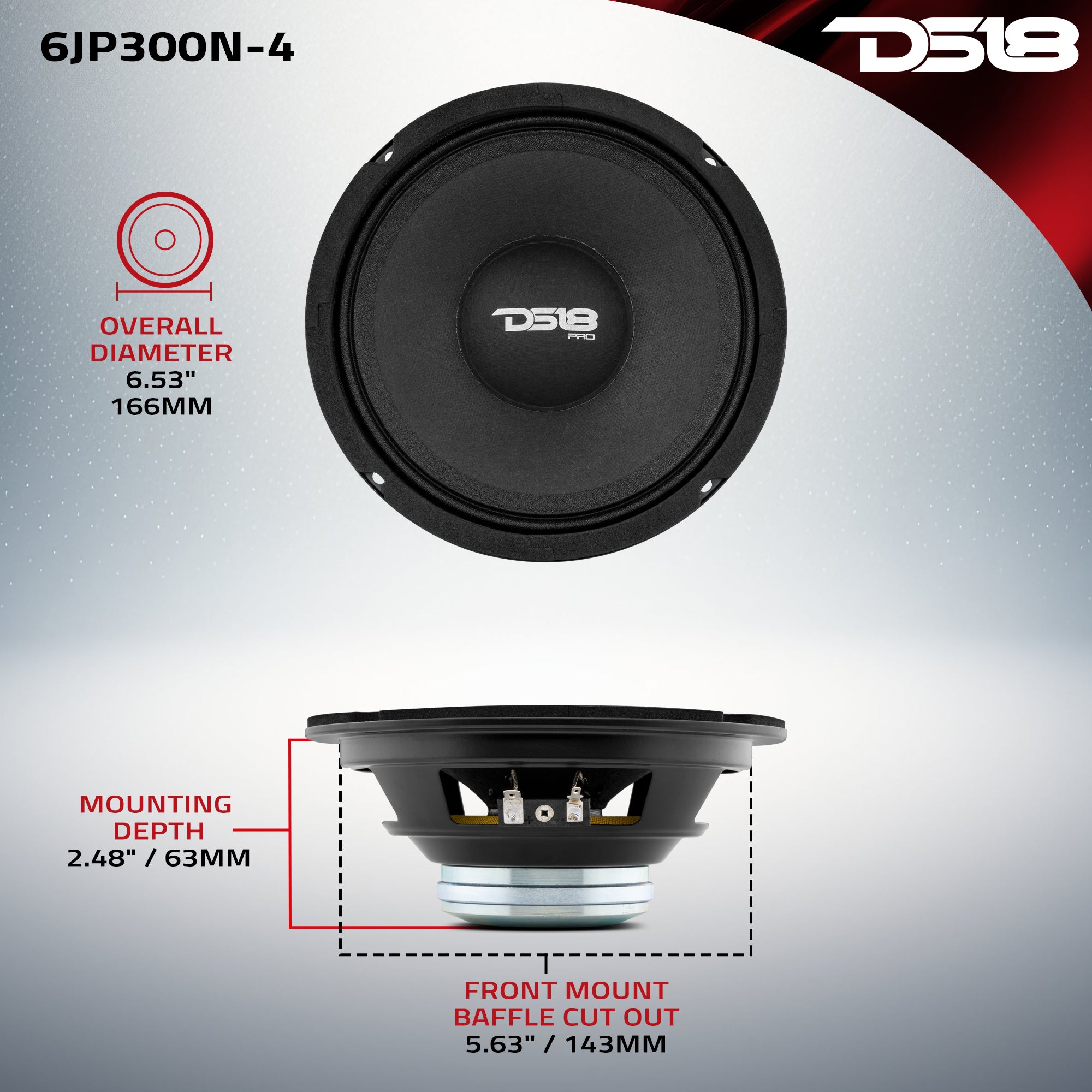

- Overall diameter: 6.53" (166mm); Mounting depth: 2.48" (63mm)
Great For
- Car Audio
- Pro Audio
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 6.5" / 165mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 150W |
| MAX Power Handling | 300W |
| Sensitivity (1w/1m) | 97dB |
| Frequency Response | 80Hz-10KHz |
| Recommended HI Pass Crossover | 120Hz |
| Sold in Pair or Single | Single |
| Grill Included | No |
| MOTOR | |
| Voice Coil Diameter | 1.5" / 38mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Satin Black |
| Magnet Material | Neodymium |
| Magnet Size | 75x45x6mm |
| MEASUREMENT | |
| Overall Diameter | 6.53" / 166mm |
| Overall Depth | 2.67" / 68mm |
| Front Mount Baffle Cutout | 5.63" / 143mm |
| Mounting Depth | 2.48" / 63mm |
| Motor Diameter | 2.95" / 75mm |
