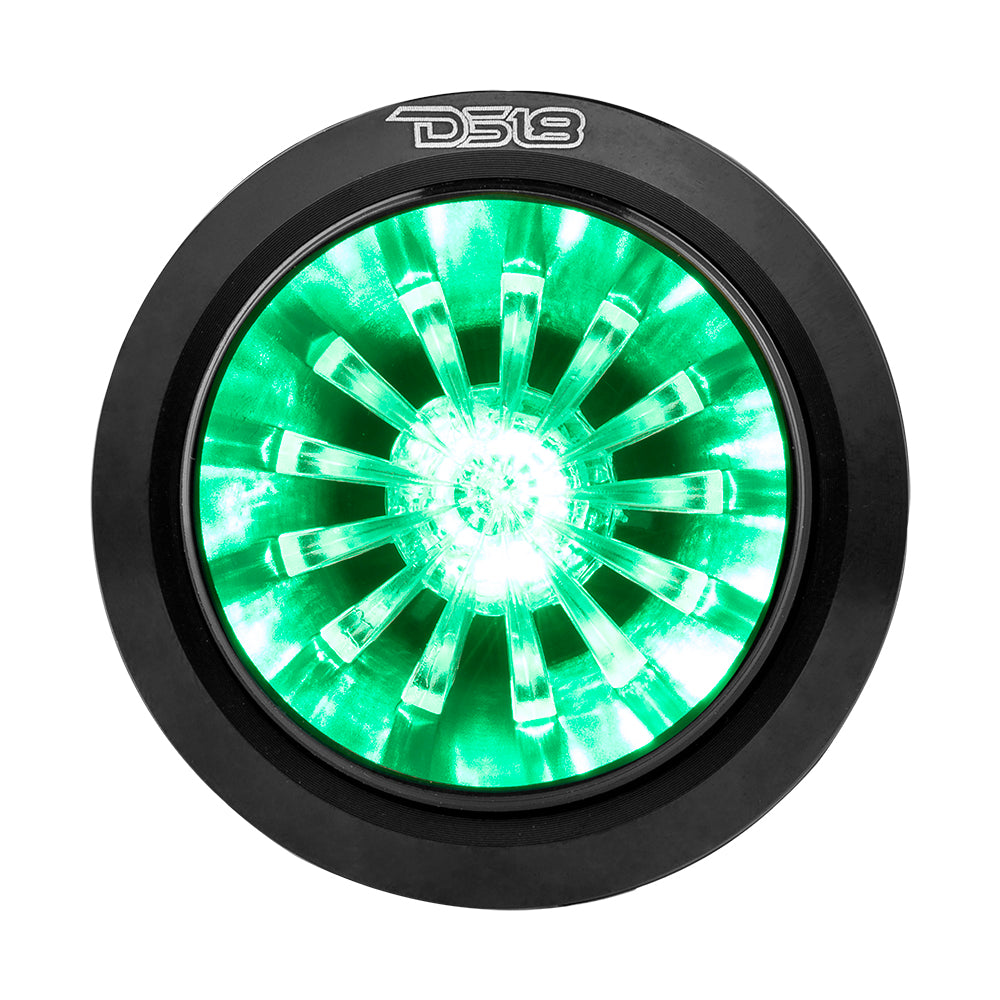

DS18 PRO-TW720L PRO 1.6" Shallow High Compression Neodymium Super Bullet Tweeter 280 Watts 1" Aluminum Voice Coil 4-Ohms WITH RGB LED Lights
High Fidelity at High Frequencies
The experts at DS18 are in constant flux to bring state-of-the-art sound to listeners worldwide. The newest addition to our PRO-TW series is the latest example of that.
The PRO-TW720L are professional grade super tweeters that recreate sounds perfectly at high frequencies. The high quality sounds and RGB lights will make you think you’re in the middle of the crowd at your favorite artists concert. Our innovative bullet dust cover keeps your voice coil safe and the neodymium magnet helps keep it secure to guarantee high frequencies cut through all the noise in between.
Make your sound system complete with the DS18 PRO-TW720. It’s easy to install and gives your favorite music that concert feel even if you’re far away. Get yours while supplies last!
Highlights
- Handles high frequencies with ease.
- Powerful and reliable KSV 4-Ohms 1-inch voice coil rated at 60 watts AES, 140 W program, and 280 W peak power ratings each with a built-in capacitor filter to help prevent failure from harmful frequencies.
- Super tweeter bullet design delivers extremely high range volume that can be heard for great distances with extreme clarity.
- Professional grade tweeter that takes your sound system to the next level!
- Designed to be repaired quickly and easily with our drop in voice coil kits that can be installed in less than 5 minutes.
- The neodymium magnet structure, with a mounting depth of only 1.77” - 1.26” inches is robust yet small enough to fit an a wide and almost limitless number of applications.
Great for:
- Car Audio
- Pro Audio
- Motorcycles
- Home Studio
- Hi-Fi Installation
- Surround Sound
- Stunt Walls
- DIY Project
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 1.6" / 42mm |
| Nominal Impedance | 4ohm |
| AES Power Handling | 70W |
| Program Power Handling | 140W |
| Peak Power Handling | 280W |
| Sensitivity (1w/1m) | 103dB |
| Frequency Response | 2K-20KHz |
| Recommended Hi Pass Crossover | 3KHz |
| BODY/FEATURES | |
| Pair or Single | Single |
| Body Material | Aluminum |
| Body Color / Finish | Black |
| Bullet Material | Translucid ABS with RGB LED |
| Rubber Gaskets | Yes, 1 x 5mm + 1 x 1.9mm (thickness) |
| Locknut ring | Yes, 2 x Aluminum 4.7mm (thickness) |
| RGB Wire | Yes, with fast connector |
| MOTOR | |
| Voice Coil Diameter | 1" / 25.4mm |
| Voice Coil Former Material | KSV |
| Winding Material | Aluminum Round Wire |
| Diaphragm Material | Polyether Ether Ketone (PEEK) / Poliéter éter cetona |
| Magnet Material | Neodymium |
| Magnet Size | 0.96"x0.27"x0.27" / 24.5x7x7mm |
| MEASUREMENT | |
| Overall Diameter | 2.28" / 58mm |
| Overall Depth | 1.93" / 49mm |
| Front Mount Baffle Cutout | 1.73" / 44mm |
| Mounting Depth | 1.77"~1.26" / 45~32mm |
