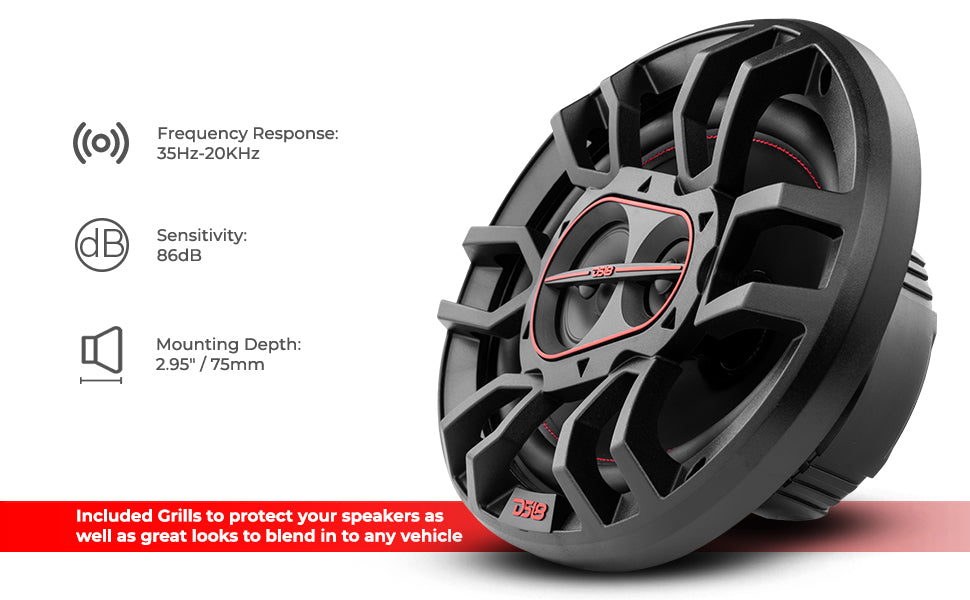

DS18 G6.9Xi GEN-X 6x9" 3-Way Coaxial Speakers 180 Watts
4-Ohm
The GEN-X Coaxial Series is back!
The power, clarity, and range everyone who likes it LOUD loves about the GEN-X series returns in a speaker equipped with an extremely durable steel basket to outlast any vehicle it’s installed in.
The G6.9Xi was made for amplifiers, but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.
The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 35Hz. The 3-way design on these speakers bring a full range of frequencies with great response without the need for a large power requirement.
These speakers get loud extremely easily with a MAX Power Handling of 180W and RMS Power Handling of 60W.
Order the G6.9Xi for your system to expand your soundstage today!
Highlights
- 3-Way Design implemented through use of two tweeters per speaker for full range quality on every listen
- Rubber surrounds with treated paper cones for great volume and sensitivity to power ratio
- 2 Speakers included
Great For
- Home studios
- Bookshelf
- Satellite
- Surround Sound Speaker
- Hi-Fi installation
- Car audio
- DIY Projects
Technical Details
| GENERAL SPECIFICATIONS | |
| Nominal Diameter | 6X9" / 152x228mm |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 60W |
| MAX Power Handling | 180W |
| Sensitivity (1w/1m) | 86dB |
| Frequency Response | 35Hz-20KHz |
| Recommended HI Pass Crossover | 50Hz |
| Number of ways | 3 |
| Pair or Single | Pair |
| Grill Included | Yes |
| WOOFER SPECIFICATIONS | |
| Voice Coil Diameter | 1" / 25.5mm |
| Voice Coil Former Material | ASV |
| Winding Material | EISV |
| Cone Material | Paper |
| Surround Material | Rubber |
| Basket Material | Steel |
| Basket Color/Finish | Black Matte |
| Magnet Material | Barium Ferrite |
| Magnet Weight | 15.7Oz / 445g |
| TWEETER SPECIFICATIONS | |
| Nominal Diameter | Tw1: 2.3" / 59mm Tw2: 1.1" / 29mm |
| Voice Coil Diameter | Tw1: 0.6" / 17mm Tw2: Peizo |
| Voice Coil Former Material | Tw1: PESV Tw2: N/A |
| Winding Material | Tw1: EISVM Tw2: N/A |
| Diaphragm Material | Tw1: Mylar Tw2: Mylar |
| Magnet Material | Tw1: Barium Ferrite Tw2: N/A |
| Magnet Weight | Tw1: 34g Tw2: N/A |
| SPEAKERS MEASUREMENT | |
| Overall Diameter | 6.4"x9.2" / 163x234mm |
| Overall Depth | 3.85" / 97.8mm |
| Overall Diameter (With Grill) | 7.24"x10.4" / 184x264mm |
| Overall Depth (With Grill) | 4.15" / 105.5mm |
| Front Mount Baffle Cutout | 5.9x8.66" / 150x220mm |
| Mounting Depth | 2.95" / 75mm |
| Motor Diameter | 4.17" / 106mm |
| Tweeter Protrusion | 0.9" / 22.8mm |
