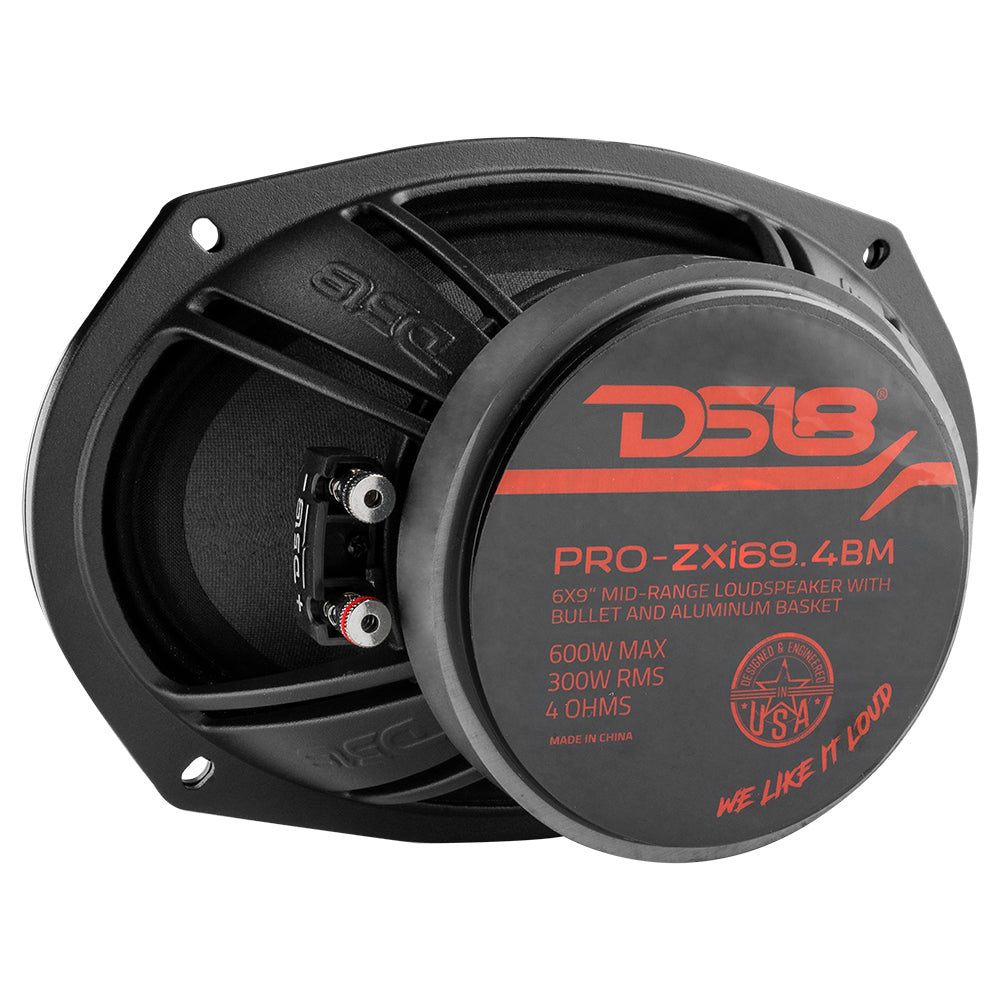

DS18 PRO-ZXI694BM 6X9" Mid-Range Loudspeaker with Bullet 600 Watts 4-Ohm
The ZXi series brings Pro Audio to a bright new level of elegance, clarity, and loudness.
These speakers were designed specifically for the audio enthusiast that wants unparalleled volumes with amazing sound quality all while absorbing the power thrown at efficiently allowing it to play up to extreme volumes with authority for extended periods of time.
The PRO-ZXi694BM has a beautiful black basket face with strong black on black bullet dust cap.
This 4-ohm 6x9 Inches handles an enormous 300 watts RMS and 600 watts MAX power ensuring screaming loud mid and high range frequencies be acute and clear.
Highlights
- 6x9” Bullet black on black Pro-Audio Loudspeaker.
- Max Power Handling: 600 watts
- RMS Power Handling: 300 watts
- Frequency Response: 80Hz-12.5KHz
- Voice Coil Diameter: 1.5"
- Voice Coil Material: Glass Fiber
- Impedance: 4-Ohm
- Sensitivity: 98dB
- Magnet Weight: 30 Oz + 3 Oz
- Magnet Material: Ferrite + Neodymium
- Mounting Depth: 3.38"
- Recommended High Pass: 100Hz
Great For:
- Car Audio
- Pro Audio
- Motorcycles
- Home Studio
- Hi-Fi Installation
- Surround Sound
- Bookshelf Speakers
- Stunt Walls
- DIY Projects
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 6x9” / 152.4 x 228.6mm |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 300w |
| MAX Power Handling | 600w |
| Sensitivity (1w/1m) | 98dB |
| Frequency Response | 80Hz - 12.5KHz |
| Recommended HI Pass Crossover | 100 Hz |
| Pair or single | Single |
| MOTOR | |
| Voice Coil Diameter | 1.5” / 38.6mm |
| Voice Coil Former Material | Glass Fiber |
| Winding Material | CCAW |
| Cone Material | Paper |
| Bullet Material | Aluminum |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Color | Sandblasted Black |
| Magnet Material | Ferrite + Neodymium |
| Magnet Weight | 30+3 Oz |
| Displacement Volume | 0.62L / 0.0219ft3 |
| MEASUREMENT | |
| Overall Diameter | 9.43x6.57” / 240x167mm |
| Overall Depth | 3.7" / 94mm |
| Front Mount Baffle Cutout | 8.74x6” / 222x153mm |
| Mounting Depth | 3.38” / 86mm |
| Motor Diameter | 4.72” / 120mm |
