DS18 SRW10.4 10" Car Subwoofer 400 Watts 4-Ohm SVC Shallow Mount

It's easy to get great bass when there's very little room with our new line of shallow  mount subwoofers. The SRW10.4D (DVC) and SRW10.4 (SVC) mounts in little as 2.95 inches mounting depth and can be utilized in both ported and sealed boxes for great bass in a tight area. This sub handles 200 watts RMS and 400 watts Peak power with a 86 db sensitivity which is very high for a shallow mount sub raising this model high above the bar. This sub comes in both dual voice coil 4 ohms (SRW10.4D) and single voice coil 4 ohms (SRW10.4) so you can wire appropriately to your amp for maximum power to bring all your music to life!

Highlights

• SRW bass series was made to produce great bass within a shallow sub frame exceeding most other subs volume while also coming in at an amazing price point.
• Large surround with flexible spider packs will help the CCA voice coil teach maximum xmax producing full and deep bass with a up to spec box.
• Shallow mount size will let you fit this sub in compact places and requires less box space than other subs, its size giving you many options in which to place it.

Technical Details



Nominal Diameter	10"
Nominal Impedance	4 ohms
RMS Power Handling	200 Watts
Maximum Power Handling	400 Watts
Sensitivity (1w/1m)	87dB
Frequency Response	23-250Hz
Recommended Lo Pass Crossover	90Hz
Voice Coil Diameter	50.8mm / 2"
Voice Coil Former Material	Aluminum
Winding Material	SV
Basket Material	Steel
Magnet Material	Ferrite
Magnet Weight	45 oz
Measurements
Overall Diameter	260mm / 10.23"
Front Mount Baffle Cutout	232mm / 9.13"
Overall Depth	92mm / 3.62"

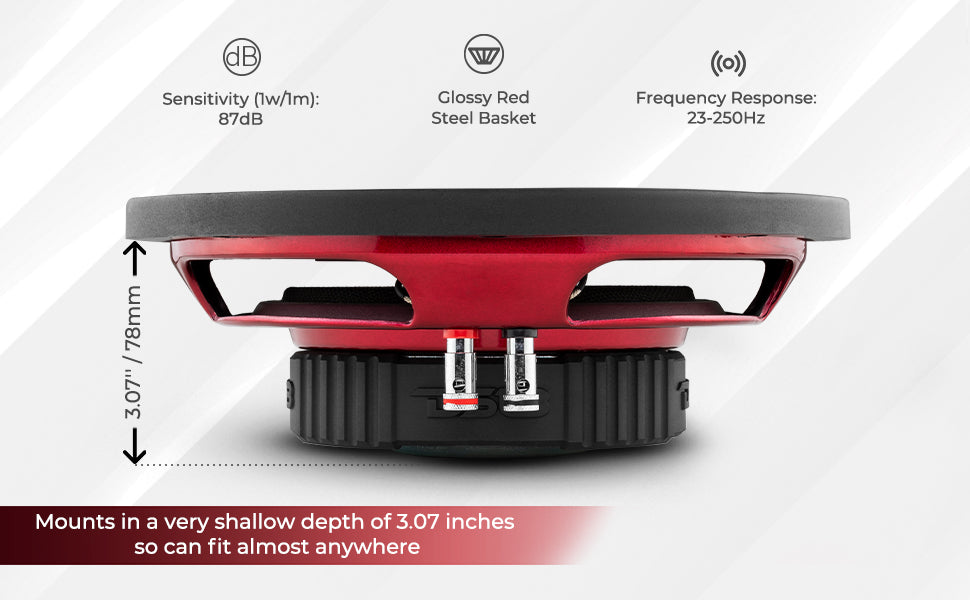

Mounting Depth	78mm / 3.07"



Box Info
