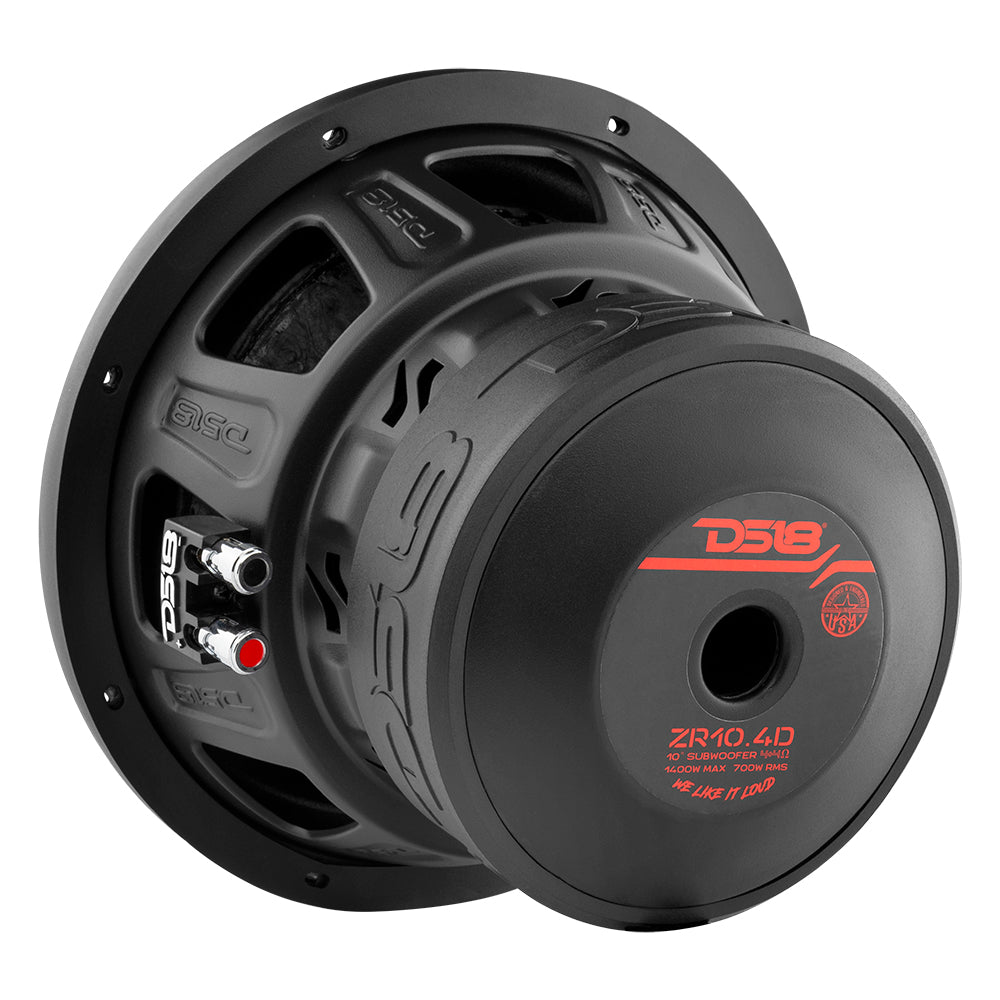

DS18 ZR10.4D 10" Car Subwoofer with 1400 Watts 4-Ohm DVC
The ZR subline is an amazing entry level subwoofer that both handles great power and gives you smooth clean bass. These subs work great in both sealed and ported boxes giving you many options for placement in any vehicle.
This 10 inch model comes in both dual 2 and dual 4 ohms configurations giving you many options to perfectly match your amplifiers optimal impedance. This model comes with a 2.5 inch aluminum voice coil that handles 700w RMS and 1400w Max power. The large foam surround and pressed paper cone works greatly together to deliver smooth crisp bass that can be heard strongly throughout and outside the vehicle.
Highlights
- Large foam surround giving great xmax and bass precision while keeping great cone control when the subwoofer is close to maximum power.
- Great power handling of 700w RMS and 1400w Max through a high strength 2.5 inch aluminum voice coil.
- Very strong stamped basket with show quality DS18 logos on the frame, magnet boot, magnet, DS18 dust cap, and high quality push terminal connectors.
- Designed to give crisp and clear bass in any vehicle and can be used in sealed and ported boxes making them highly versatile.
Technical Details
SPECIFICATIONS Nominal Diameter 10" Nominal Impedance 4 + 4 Ohms RMS Power Handling 700W MAX Power Handling 1400W Sensitivity (1w/1m) 81 dB Frequency Response 27Hz - 200Hz Recommended Lo Pass Crossover 100 Hz MOTOR Voice Coil Diameter 2.5" / 61.6mm VC Former Material Aluminum Winding Material Copper Cone Material Non Pressed Paper Dust Cap Material PPI Surround Material Foam Basket Material Steel Basket Color/Finish Matte Black Magnet Material Ferrite Magnet Weight 100 oz Displacement Volume 0.05 ft3 THIELE & SMALL PARAMETERS Equivalent Volume 8.18 L Excursion (one way) 25mm Free Air Resonance 37Hz Mechanical Factor 4.86 Electrical Factor 0.93 Total Factor 0.78 Moving Mass 216.3g Compliance 52.8µ m/N BL Factor 10.7 Voice Coil Inductance 823.5m mH Cone Area 333.29 Cm2 DC Resistance 3.4 + 3.4 ohm Efficiency Bandwidth Product 39.78 MEASUREMENTS Overall Diameter 10.31” / 262mm Overall Depth 6.92" / 176mm Front Mount Baffle Cutout 9" / 229mm Mounting Depth 6" / 152.3mm Motor Diameter 6.1" / 155mm
Box Info
