10" PRO Water Resistant Woofer 350 Watts RMS 4 Ohm SVC - Perfect for Marine Audio, Car Subwoofers & Outdoor Sound Systems
$65.97
$119.95
Safe 45%
10 10 10 10 10 10 10
10
10
10
10
10
10
10
10" PRO Water Resistant Woofer 350 Watts RMS 4 Ohm SVC - Perfect for Marine Audio, Car Subwoofers & Outdoor Sound Systems
$65.97
$119.95
45% Off
Quantity:
Delivery & Return: Free shipping on all orders over $50
Estimated Delivery: 10-15 days international
14 people viewing this product right now!
SKU: 24664073
Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay
shop
Description

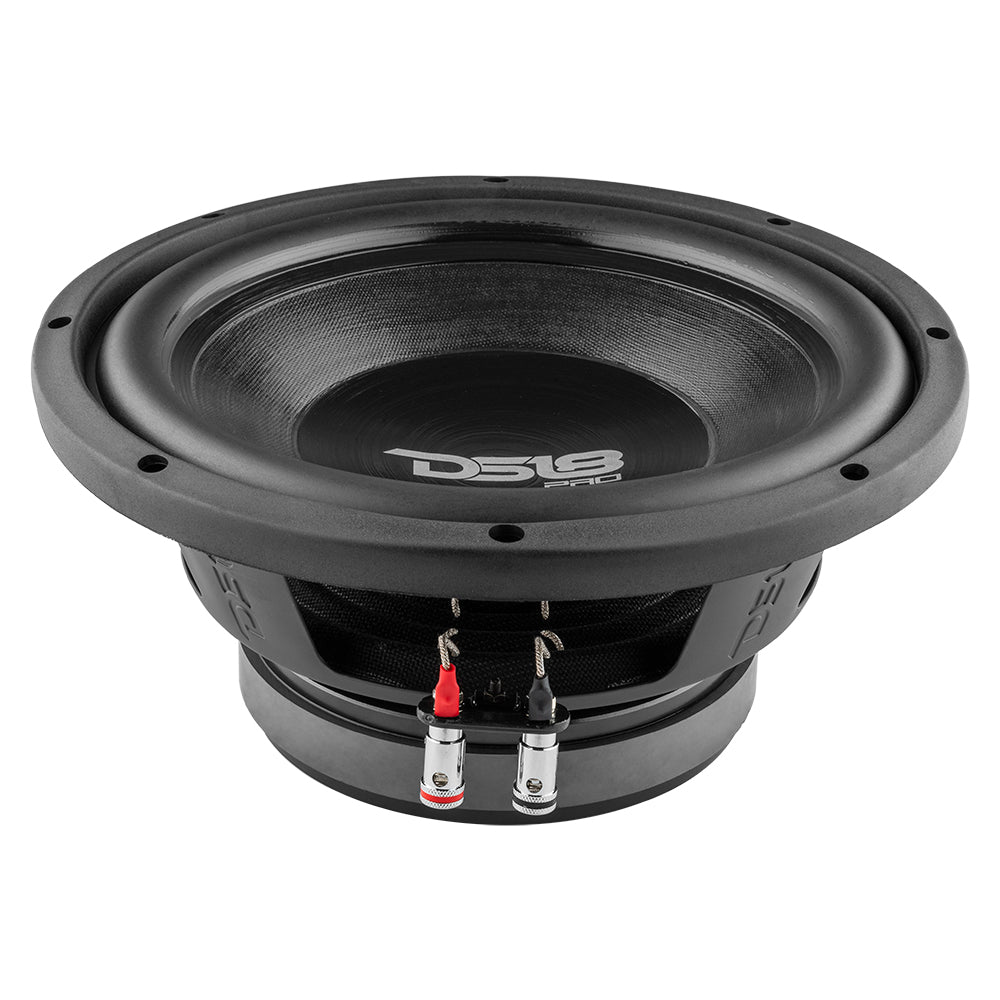

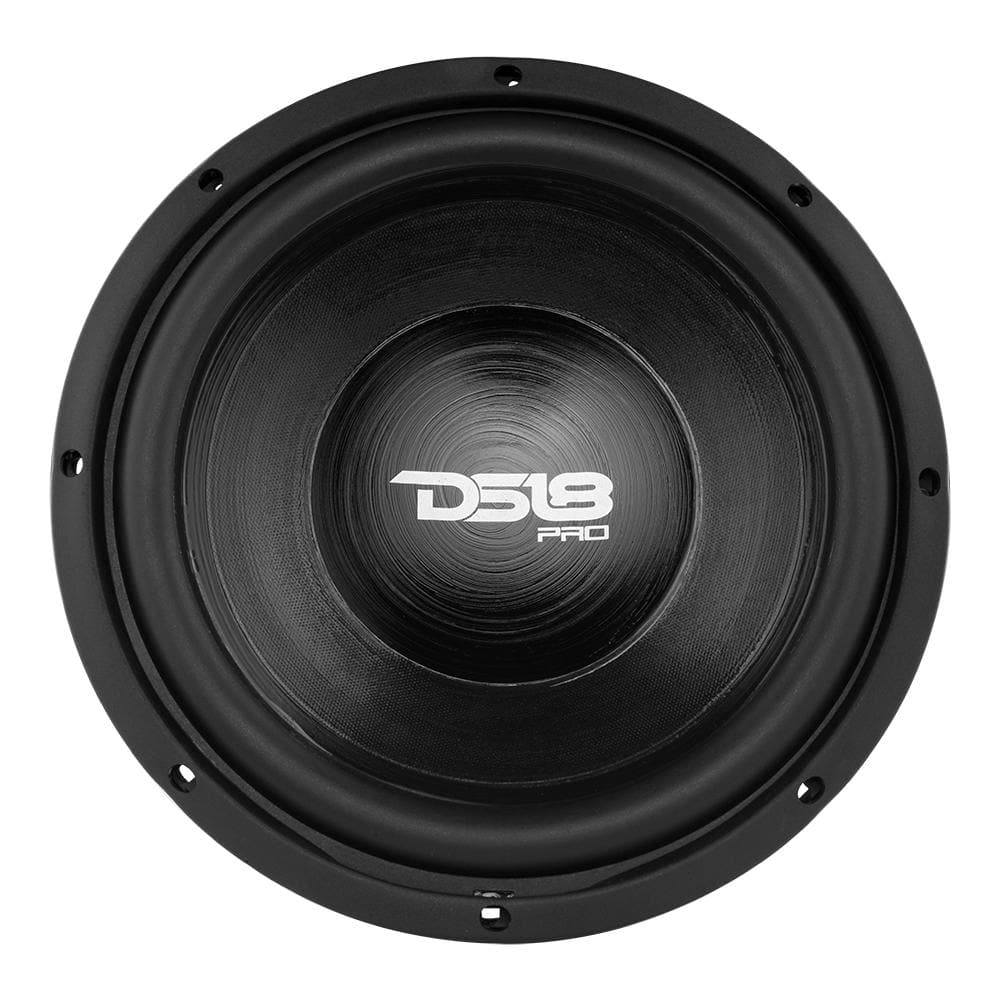

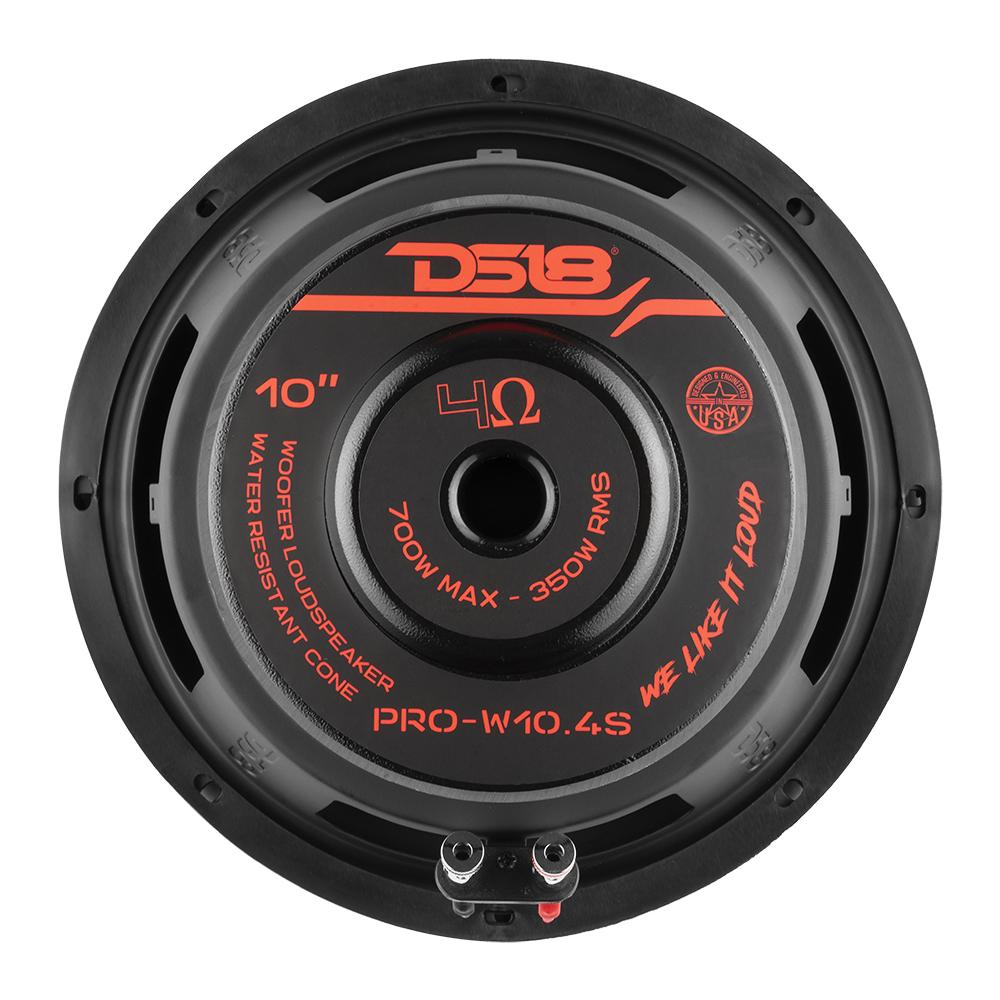

DS18 PRO-W10.4S 10" Water Resistant Motorcycle & Powersports Woofer 700 Watts 4-Ohm SVC

DS18 is proud to present you with a subwoofer long awaited by all bikers and powersports enthusiast alike! The DS18 PRO-W10.4S is a full size water resistant subwoofer made to withstand harsh elements all while not sacrificing any build quality that normally comes with marine speakers. This hybrid both comes with a standard subwoofer basket, coil, and motor structure all while the cone of the woofer is water tight and made so it can take any water without risking corrosion and deformation that water naturally causes.

The magnet and basket have also been coated to withstand corrosion. The cone is made of durable light weight plastic with the rubber surround there to make sure things stay tight. This combo allows zero water to penetrate into the inner workings of the subwoofer to ensure long life and loudness. This subwoofer is offered in single 2 ohms and 4 ohms configurations and handle 350w RMS and 700w Peak power and works very well with both sealed and ported boxes.

Highlights

  • Woofer made especially for motorcycles but can be used in all applications that need a water resistant solution.
  • Don't sacrifice any loudness that you normally loose with IPX rated subs.
  • Coated magnet and basket to help reduce the chances of corrosion.
  • We have released single voice coil 4 ohms and 2 ohms versions so you can optimally set your ohm load with the amplifier of your choice.
  • Durable lightweight plastic cone and rubber surround to prevent any water perturbing down into the working parts and motor of the subwoofer.
  • Made to be loud and clear so you can feel and hear the thump at 70+ MPH highway speed as long as the appropriate power is supplied.


Technical Details


Nominal Diameter10" (254mm)
Nominal Impedance4 Ohms SVC
Maximum Power Handing700 watts
RMS Power Handing350 watts
Sensitivity (1w/1m)88dB
Frequency Response40Hz - 4.5KHz
Recommended Lo Pass Crossover180Hz
Motor:
Voice Coil Diameter2.5" (65.5mm)
Voice Coil Former Material2.12L
Winding MaterialSV
Cone MaterialWater resistant paper
Dust Cap MaterialWater resistant paper
Surround MaterialRubber
Basket MaterialSteel
Magnet MaterialFerrite
Magnet Weight46 oz.
Displacement Volume2.12L
Thiele & Small Parameters:
Equivalent VolumeVas 19.654 LTR
Excursion (one way)Xmax 12.2 mm
Free Air ResonanceFs 40 Hz
Mechanical Factorqms 4.275
Electrical FactorQes 0.561
Total FactorQts 0.492
Moving MassMms 67.313g
ComplianceCms 0.23mm/N
BI FactorBI 9.801
Voice Coil InductanceLe 1.165mH
Diaphragm Areasd 0.035299sq/m
Dc Resistance3.2 ohms
Efficiency Band with Product77.2
Measurements:
Overall Diameter264 mm (10.39")
Overall Depth128 mm (5.04")
Front Mount Baffle Cutout231 mm (9.09")
Mounting Depth114 mm (4.49")
Motor Diameter156 mm (6.14")
