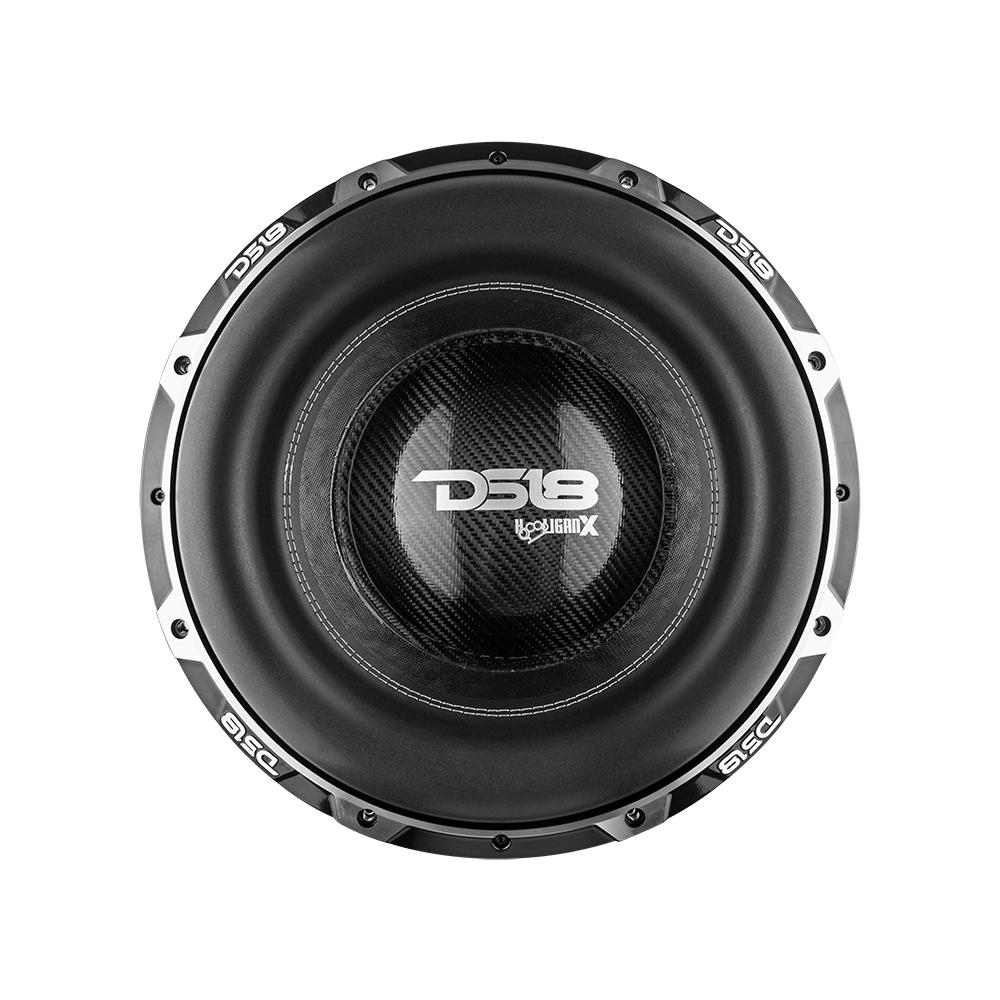

DS18 HOOL-X15.2DHE HOOLIGAN 15" High Excursion Car Subwoofer 4000 Watts Rms 4" Dvc 2-Ohm

The DS18 Hooligan X15 has already been proven to provide top end performance and bass now for 6 years on the streets and in the lanes, hooligans have been a choice of music lovers and competitors alike.

We have taken the Traditional Hooligan and revamped it in our newest revision, the Hooligan X15 High Excursion subwoofer. This model features long throw pole, larger spider, and high excursion surround to lower the FS of the speaker making it louder at subsonic frequencies. This massive sub will be great for high powered music or SPL. A FS of 26 will ensure deep lows down to 20Hz and great punchy bass up around 40Hz depending on your box tuning. This subwoofer is rated at 4000w RMS and 6000w Max so your vehicle will require electrical upgrades and large wire.

This sub will be friendly to 4th orders, 6th orders, ported boxes, and large sealed boxes and can be used in most applications that has room for the box. With a 59mm one way XMAX, this sub is sure to pump out extreme decibels with the proper power and box setup. We recommend a tuning of 25-35Hz for ported boxes depending on your goals.

If you are looking for extreme bass and massive power look no further than the Hooligan High Excursion line! This Hooligan variant will be sure to start you on your way to high volume hairtricks and massive lows!

Highlights

• High powered 4" Black Aluminum voice coil handling 4000w RMS and 6000w Max power for heavy hitting competition bass.
• We have added a large high excursion surround to help with the high pole to pole flex this subwoofer has giving it has a 59mm one way xmax!
• We have also added a larger spider that helps lower the FS (Resonant Frequency) so this sub plays lower much louder than previous versions.
• 4 inch black aluminum voice coil handling a massive 4000w RMS and 6000w Peak will be sure to get this subwoofer moving with hurricane wind forces.
• The DS18 Tooled Black basket is one of the slickest and best looking baskets on the market. Not only extremely strong but looks great so you can use plexiglass or mount inverted on your box to see the show quality frame and motor topped off by a carbon fiber dust cap.
• Huge 500oz magnet will help the voice coil receive and handle the massive power this sub requires with high efficiency and durability.

Technical Details

SPECIFICATIONS
Nominal Diameter	15"
Nominal Impedance	2 + 2 Ohms
RMS Power Handling	4000W
MAX Power Handling	6000W
Sensitivity (1w/1m)	88.2 dB
Frequency Response	16Hz - 500Hz
Recommended Lo Pass Crossover	80Hz
MOTOR
Voice Coil Diameter	4" / 99.8mm
VC Former Material	Black Aluminum
Winding Material	CCAW
Cone Material	Non-Pressed Paper
Dust Cap Material	Carbon Fiber
Surround Material	Foam
Basket Material	Aluminum
Basket Color and Finish	Sandblasted Black
Magnet Material	Ferrite
Magnet Weight	500 Oz
Displacement Volume	9.1L / 0.32 ft3
THIELE & SMALL PARAMETERS
Equivalent Volume	Vas 61.93 L /2.18 ft3
Excursion (one way)	Xmax 59 mm
Free Air Resonance	Fs 26 Hz
Mechanical Factor	Qms 4.98
Electrical Factor	Qes 0.513
Total Factor	Qts 0.402
Mechanical Mass	Mms 478.64 g
Mechanical Compliance	Cms 0.025 mm/N
BL Factor	BL 15.83
Voice Coil Inductance	Le 2.517 mH
Cone Area	754.77 Cm2
DC Resistance	1.9+1.9 ohms
Efficiency Bandwidth Product	50.6
MEASUREMENTS
Overall Diameter	15.56” / 395mm
Overall Depth	13.31” / 338mm
Front Mount Baffle Cutout	14.10” / 358mm
Mounting Depth	11.19” / 284mm
Motor Diameter	9.96” / 253mm
